The HIC Impact Test Meter
Playsafe — Official Distributor and Service Agent
Playsafe is an official distributor of the Wireless Value HIC Meter, a market-leading system for measuring Head Injury Criterion (HIC), peak acceleration and the impact-attenuation performance of playground and recreational surfacing.
The HIC Meter is designed for accurate, reliable and efficient impact testing in accordance with:
EN 1177:2018
NZS 5828:2015
SANS 51176/51177
Two meter configurations are available, depending on the level of automation, reporting and wireless functionality required.
Option 1: Single Drop HIC Meter
The Single Drop HIC Meter is a practical, entry-level option for operators who are comfortable manually recording and managing test results.
The headform is released using a manual mechanical push-button system. Results are displayed directly on the headform’s onboard screen and are then recorded manually by the operator.
Included

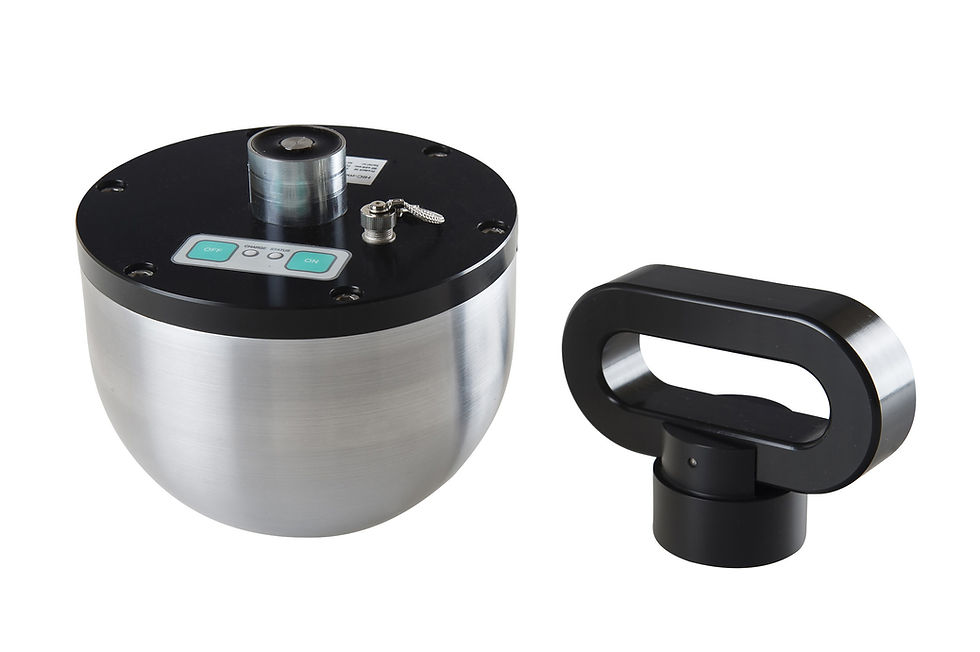

Instrumented HIC headform
Onboard results display
Wireless manual/mechanical push-button release
Battery charger
Soft carrying bag
Best suited for
Individual drop testing
Site-situ impact verification
Operators who do not require automated reporting
Occasional or lower-volume testing
Organisations seeking a straightforward and cost-effective HIC testing system
This option does not include the mobile app, desktop software, magnetic release or automated report-generation features available with the Platinum Meter.
...................................................................................................................

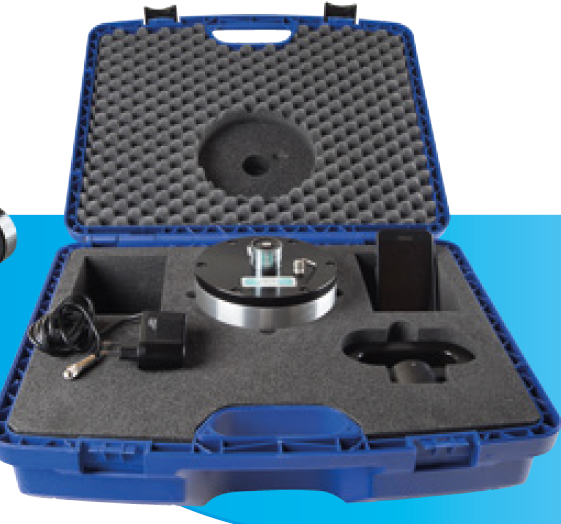

Option 2: HIC Platinum Digital Meter
The HIC Platinum Digital Meter is the complete professional testing system, providing wireless operation, digitally controlled drops and automated data collection and reporting.
The system includes a magnetic release operated through the digital device, with test data transmitted wirelessly to the mobile app and desktop software.
Included
Instrumented HIC headform
Wireless digital magnetic release system
Full wireless functionality
Mobile phone app
Desktop software
Automated data capture
Professional PDF and CSV reporting
Hard transport case
Battery charger
Carrying handle
Best suited for
Professional inspectors and testing organisations
Regular or high-volume impact testing
Automated test recording and reporting
Operators requiring efficient, traceable and branded test documentation
Organisations undertaking formal compliance and certification testing
Reports can be customised with company branding, project information and test details.
...................................................................................................................
Key Features
Standards Compliance
The HIC Meter uses certified accelerometers and is designed to undertake impact-attenuation testing in accordance with EN 1177:2018 and the applicable requirements of NZS 5828 and SANS 51176/51177.
The standard system is capable of testing from drop heights of up to approximately 3.60 metres, subject to the release and supporting equipment being used.
Simple and Reliable Operation
Both meter options provide fast and accurate test results. The Platinum model adds wireless connectivity, digitally controlled release and automated data management.
Professional Reporting
The Platinum system can generate clear PDF and CSV reports, including customised company branding and project-specific information.
Trusted Internationally
Wireless Value HIC Meters are used worldwide by local authorities, playground inspectors, testing organisations and surface manufacturers.
Optional Extras
Tripod system suitable for test heights of up to 3.00 metres.
Swing Tester - Additional hardware and software configuration for undertaking swing impact testing.
High-Height Testing - Software option allowing testing from heights of up to 5.50 metres when used with appropriate supporting and release equipment.
Delivery - Please allow approximately four weeks for configuration and delivery.
Training - Operator training is available at an additional cost. Training can cover:
Equipment setup
Drop-test procedures
App and software operation
Data interpretation
Report generation
Care and maintenance of the equipment
Calibration, Repairs and Support
Calibration of the HIC Meter accelerometers is required every two years in accordance with EN 1177.
Playsafe provides New Zealand-based support as an accredited service agent, including:
Calibration coordination
Spare parts
Equipment servicing
Repairs
Technical and operational support
By purchasing through Playsafe, you receive not only the testing equipment but also access to local technical expertise and ongoing support throughout the life of the meter.
